Product parameters
Structure：BB1
Design standards：API610
Flow：100~12000m3/h
Head：~440m
Temperature：-40~200℃
Pressure：2.5MPa（single-stage） 5.0MPa（double-stage）
Use：

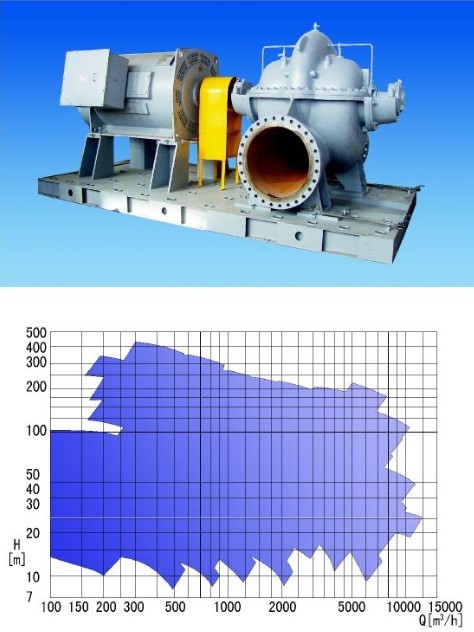

Design and manufacture in accordance with API610 10th Edition. This serial with axial split double suction is horizontal, one-stage or two-stage, supporting between bearings type centrifugal pump. Casing is volute, foot mounting for one-stage, near centerline supporting for two-stage. Big dimenions of suction and discharge nozzles provide low flow speed and noise, high effiiency and good anti-caviation performance. Close double suction impeller makes the axial force of rotor balanceable pracically that increase service life of bearings.
